YE3

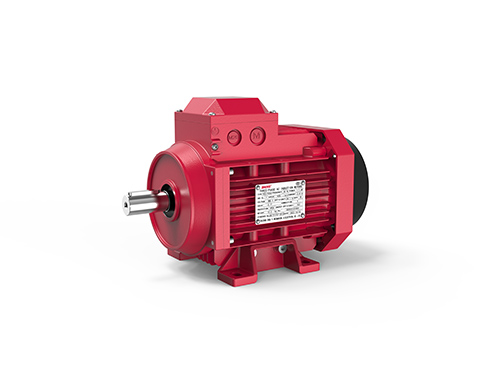

YE3三相异步电动机
规格：
● 包含10种机座规格电机，客户可根据要求进行选用
性能：
● 电机功率范围从0.06-22kW
● 效率高，达到GB18613-2020标准能效等级
● 防护等级IP55，绝缘等级F级
可靠性：
● 接线盒和机体整体铝合金压铸结构，密封性好,不生锈
● 增强散热筋设计，使机组具备更强的冷却能力
● 采用低噪音静音轴承，使电机运转起来更平稳、静音
规格：
● 包含10种机座规格电机，客户可根据要求进行选用
性能：
● 电机功率范围从0.06-22kW
● 效率高，达到GB18613-2020标准能效等级
● 防护等级IP55，绝缘等级F级
可靠性：
● 接线盒和机体整体铝合金压铸结构，密封性好,不生锈
● 增强散热筋设计，使机组具备更强的冷却能力
● 采用低噪音静音轴承，使电机运转起来更平稳、静音
| YS系列三相异步电动机 | YE2系列三相异步电动机 | YE3系列三相异步电动机 | 级数 | ||||||
| 型号 Type | 功率 Power | 型号 Type | 功率 Power | 型号 Type | 功率 Power | ||||
| kW | HP | kW | HP | kW | HP | ||||
| YS5612 | 0.09 | 1/8 | YE2-8012 | 0.75 | 1 | YE3-8012 | 0.75 | 1 | 2P |
| YS5622 | 0.12 | 1/6 | YE2-8022 | 1.1 | 1.5 | YE3-8022 | 1.1 | 1.5 | |
| YS6312 | 0.18 | 1/4 | YE2-90S2 | 1.5 | 2 | YE3-90S2 | 1.5 | 2 | |
| YS6322 | 0.25 | 1/3 | YE2-90L2 | 2.2 | 3 | YE3-90L2 | 2.2 | 3 | |
| YS7112 | 0.37 | 1/2 | YE2-100L2 | 3 | 4 | YE3-100L2 | 3 | 4 | |
| YS7122 | 0.55 | 3/4 | YE2-112M2 | 4 | 5.5 | YE3-112M2 | 4 | 5.5 | |
| YS8012 | 0.75 | 1 | YE2-132S1-2 | 5.5 | 7.5 | YE3-132S1-2 | 5.5 | 7.5 | |
| YS8022 | 1.1 | 1.5 | YE2-132S2-2 | 7.5 | 10 | YE3-132S2-2 | 7.5 | 10 | |
| YS90S2 | 1.5 | 2 | YE2-160M1-2 | 11 | 15 | YE3-160M1-2 | 11 | 15 | |
| YS90L2 | 2.2 | 3 | YE2-160M2-2 | 15 | 20 | YE3-160M2-2 | 15 | 20 | |
| YE2-160L2 | 18.5 | 25 | YE3-160L2 | 18.5 | 25 | ||||
| YE2-180M2 | 22 | 30 | YE3-180M2 | 22 | 30 | ||||
| YS5614 | 0.06 | 1/12 | YE2-8024 | 0.75 | 1 | YE3-8024 | 0.75 | 1 | 4P |
| YS5624 | 0.09 | 1/8 | YE2-90S4 | 1.1 | 1.5 | YE3-90S4 | 1.1 | 1.5 | |
| YS6314 | 0.12 | 1/6 | YE2-90L4 | 1.5 | 2 | YE3-90L4 | 1.5 | 2 | |
| YS6324 | 0.18 | 1/4 | YE2-100L1-4 | 2.2 | 3 | YE3-100L1-4 | 2.2 | 3 | |
| YS7114 | 0.25 | 1/3 | YE2-100L2-4 | 3 | 4 | YE3-100L2-4 | 3 | 4 | |
| YS7124 | 0.37 | 1/2 | YE2-112M4 | 4 | 5.5 | YE3-112M4 | 4 | 5.5 | |
| YS8014 | 0.55 | 3/4 | YE2-132S4 | 5.5 | 7.5 | YE3-132S4 | 5.5 | 7.5 | |
| YS8024 | 0.75 | 1 | YE2-132M4 | 7.5 | 10 | YE3-132M4 | 7.5 | 10 | |
| YS90S4 | 1.1 | 1.5 | YE2-160M4 | 11 | 15 | YE3-160M4 | 11 | 15 | |
| YS90L4 | 1.5 | 2 | YE2-160L4 | 15 | 20 | YE3-160L4 | 15 | 20 | |
| YE2-180M4 | 18.5 | 25 | YE3-180M4 | 18.5 | 25 | ||||
| YE2-180L4 | 22 | 30 | YE3-180L4 | 22 | 30 | ||||
| YS7116 | 0.18 | 1/4 | YE2-90S6 | 0.75 | 1 | YE3-90S6 | 0.75 | 1 | 6P |
| YS7126 | 0.25 | 1/3 | YE2-90L6 | 1.1 | 1.5 | YE3-90L6 | 1.1 | 1.5 | |
| YS8016 | 0.37 | 1/2 | YE2-100L6 | 1.5 | 2 | YE3-100L6 | 1.5 | 2 | |
| YS8026 | 0.55 | 3/4 | YE2-112M6 | 2.2 | 3 | YE3-112M6 | 2.2 | 3 | |
| YS90S6 | 0.75 | 1 | YE2-132S6 | 3 | 4 | YE3-132S6 | 3 | 4 | |
| YS90L6 | 1.1 | 1.5 | YE2-132M1-6 | 4 | 5.5 | YE3-132M1-6 | 4 | 5.5 | |
| YE2-132M2-6 | 5.5 | 7.5 | YE3-132M2-6 | 5.5 | 7.5 | ||||
| YE2-160M6 | 7.5 | 10 | YE3-160M6 | 7.5 | 10 | ||||
| YE2-160L6 | 11 | 15 | YE3-160L6 | 11 | 15 | ||||
| YE2-180L6 | 15 | 20 | YE3-180L6 | 15 | 20 | ||||
